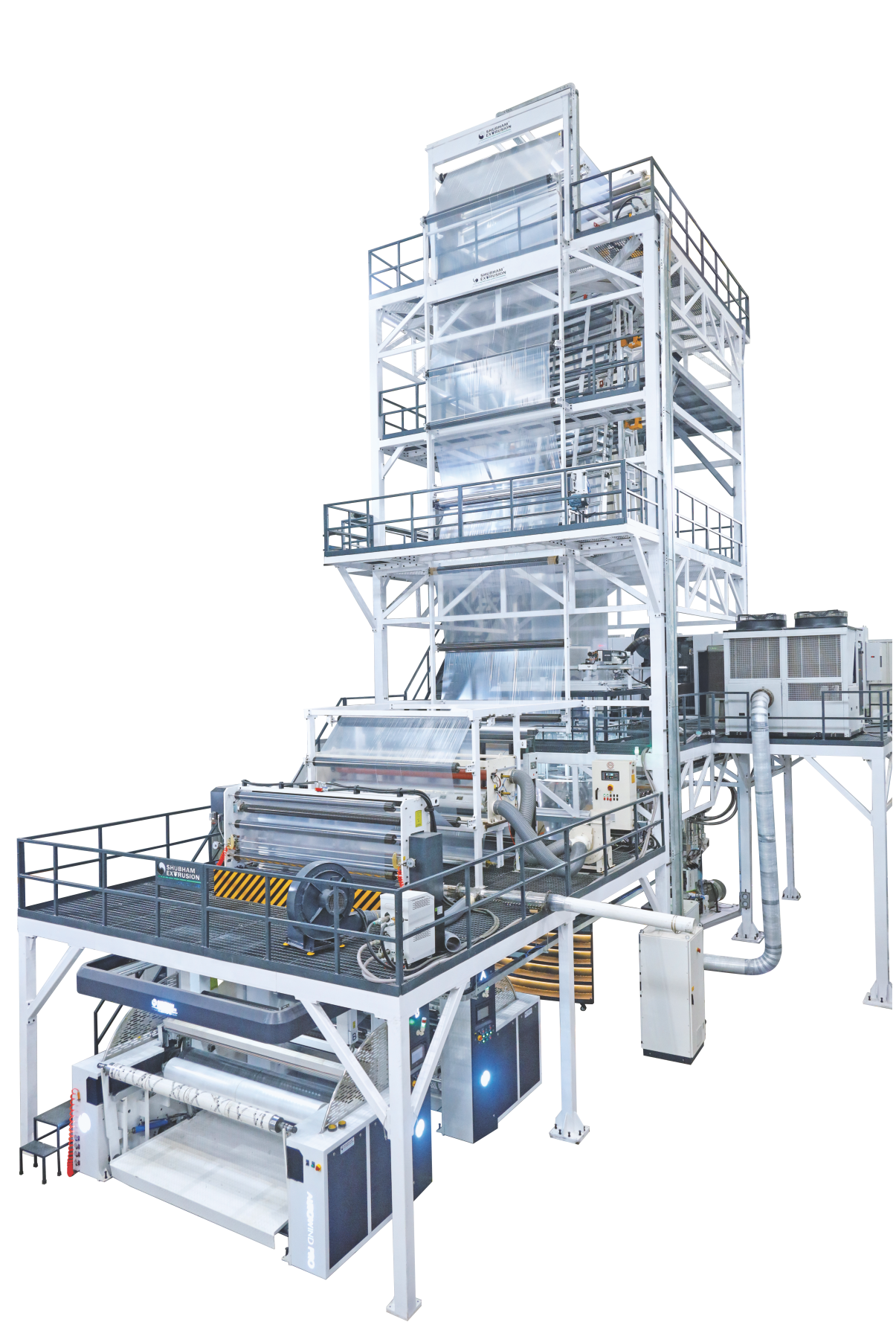

α Flex 3 Layer IBC Blown Film Line
α Flex 3 Layer IBC Blown Film Line
The most important data at a glance
| Polymer | LDPE, LLDPE, HDPE, mLLDPE, EVA, PP |
| Thickness Range | 20 – 200 µ |
| Layflat Range | 1200 – 2700 mm |
| Output | 375 – 700 Kg/Hr |
Lamination Film
Surface Protection Film
Tarpaulin Film
Shrink Hood Film
Stretch Hood
Tyre Release Film
FIBC Liner/Mattress Cover
Courier Bag
LD-Shrink Film
Strech Film
Water Packaging Film
Milk Film
Food Packaging Film
Atta Film
Mulch Film
α Flex 3 Layer IBC Blown Film Line
Perfect for you because
Simple in Design
Easy in Operation
Compact & Efficient
Advantages :
-
Minimum Gauge Variation Even At Higher Output With High Gloss Film.
-
Produce Thinner & Thicker Film From Same Blown Film Plant With Optimum Output.
-
Better Homogeneous Mixing And Melting Of Polymers.
-
Easy To Operate At Different Leyflat Size & Very Good Bubble Control.
-
Avoid Degradation Of Melt & Get Best Optical Property Of Film In Long Run.
-
To Avoid Degradation Of Melt & Get Best Optical Property Of Film In Long Run.
-
Hasle Free Operation Of Extruder.
Product Video :
α Flex 3 Layer IBC Blown Film Line
Technical Specification
|
Model Name : IBC CO-Extrusion Three Layer Blown Film Plant |
|
Material Used : LDPE/ LLDPE/ HDPE/ mLLDPE/ EVA/ PP |
|
Output Range : 375 - 700 Kg/Hr (Depends On Extruder's Size) |
|
Screw Diameter : 65 / 75 / 90 / 105 mm (Customized) |
|
Screw L/D : 30:1 |
|
Layflat Range: 1200 - 2700 mm |
|
Thickness Range : 20 – 200 µ |
α Flex 3 Layer IBC Blown Film Line
Select Your Model (Can select more than one model)
IBC 1900-65/75/65
- Screw Diameter: 65/75/65 mm
- Layflat Range: 1200-1800 mm
- Max. Output: 375-400 Kg/Hr
- Optimum Layer Ratio: 1 : 2 : 1
IBC 2200-65/75/65
- Screw Diameter: 65/75/65 mm
- Layflat Range: 1350-2100 mm
- Output: 400-425 Kg/Hr
- Optimum Layer Ratio: 1 : 2 : 1
IBC 2300 -65/75/65
- Screw Diameter: 65/75/65 mm
- Layflat Range: 1450-2200 mm
- Max. Output: 400-425 Kg/Hr
- Optimum Layer Ratio: 1 : 2 : 1
IBC 2800-75/90/75
- Screw Diameter: 75/90/75 mm
- Layflat Range: 1800-2700 mm
- Max. Output: 550-600 Kg/Hr
- Optimum Layer Ratio: 1 : 2 : 1
IBC 2800-75/105/75
- Screw Diameter: 75/105/75 mm
- Layflat Range: 1800-2700 mm
- Max. Output: 600-700 Kg/Hr
- Optimum Layer Ratio: 1 : 2.5 : 1
